Rigid Core Floor Conical Twin Screw Extrusion Machine
Rigid Core Floor Conical Twin Screw Extrusion Machine consists of conical twin-screw extruder,T-die,four roller calender,edge trimming unit, cooling conveyor, take-off, cutting system and stacking etc.
Product description

Rigid Core Floor Conical Twin Screw Extrusion Machine

Rigid Core Floor Conical Twin Screw Extrusion Machine

Rigid Core Floor Conical Twin Screw Extrusion Machine consists of conical twin-screw extruder,T-die,four roller calender,edge trimming unit, cooling conveyor, take-off, cutting system and stacking etc.

What is Rigid Core Floor ?

Rigid Core Floor is a new kind of environmental protection home decoration material. It is fireproof, waterproof, formaldehyde-free, easy to maintain, easy to install and other advantages. So in recent years stone plastic composite floor has been particularly popular in Europe and America.

How to produce the Rigid Core Floor?

Rigid Core Floor includes many processing, today we just talk from Mixing to Sheet Panel stacking:

Mixing → Extrusion → Film Covering→ Slid cutting → Stacking

The UV Coating, Profiling Slotting, Backside padding laminating and Packaging will be processed after that.

About the whole process, you can visit: http://www.extrusionpanel.com/spc-floor-extrusion-machine/

Step 1: Mixing

The main materials of Rigid Core Floor is limestone: the Molecular formula is CaCO3(Calcium carbonate), which is a common substance found in rocks as the minerals calcite and aragonite.

No. Item Formulation Reference Price Reference



1 CaCO3 (400mesh) 200-225kg 45~90$/Ton
2 PVC Resin (K-Value 67) 75kg 1100~1200$/Ton
3 Recycled PVC Chips 50-60kg 400~550$/Ton
4 Stabilizer 3.3-6.5kg 1850~1980$/Ton
5 CPE 4~6kg 2100~2280$/Ton
6 PE-Wax 0.5~0.7kg 1650~1760$/Ton
7 Lubricant 0.7~1.3kg 1950~2050$/Ton
8 ACR 3-4.5kg 2100~2250$/Ton

Step 2: Extrusion

SPC Rigid Vinyl Plank Production

Extrusion is critical step in the whole process,Setting up the suitable temperature for each heating zones of barrel and T-die, control the speed of screw and monitor the electric current for stable pushing to connect with 4-Roller calender.

Step 3:Film Covering

Step 4: Slid Cutting

Step 5:Stacking

automatic sucker

You can click the PDF file for more details.

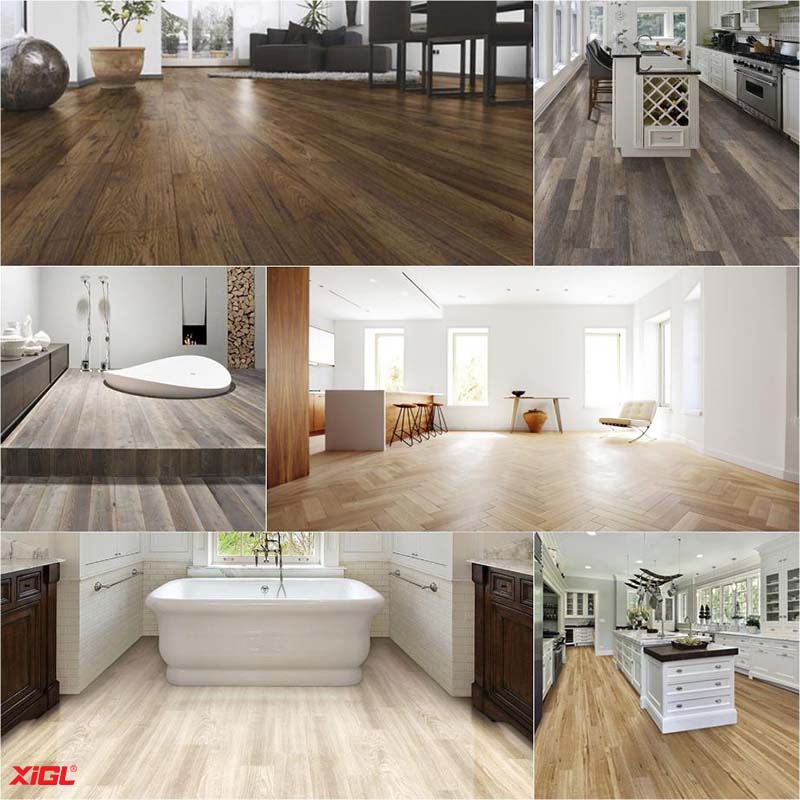

Whats the application of Rigid Core Floor in our daily life?

Rigid Core floor is widely used in various commercial buildings,offices, shopping malls,airport,hospitals,schools,hotels,residential buildings and other places.
